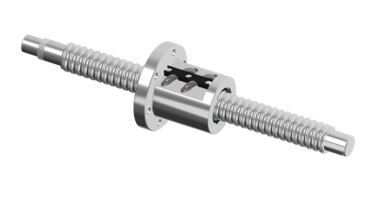

R-BRFS Series

This model is the simplest single nut type, offering a rich combination of shaft diameter and lead, with a wide range of applications. Additionally, this model is available in both preload-free and preload type with large steel balls contacting at four points.

Shaft diameter:10mm-63mm

Lead:04mm-16mm

DN value:70,000

Precision:C10-C7

  • Series Characteristics

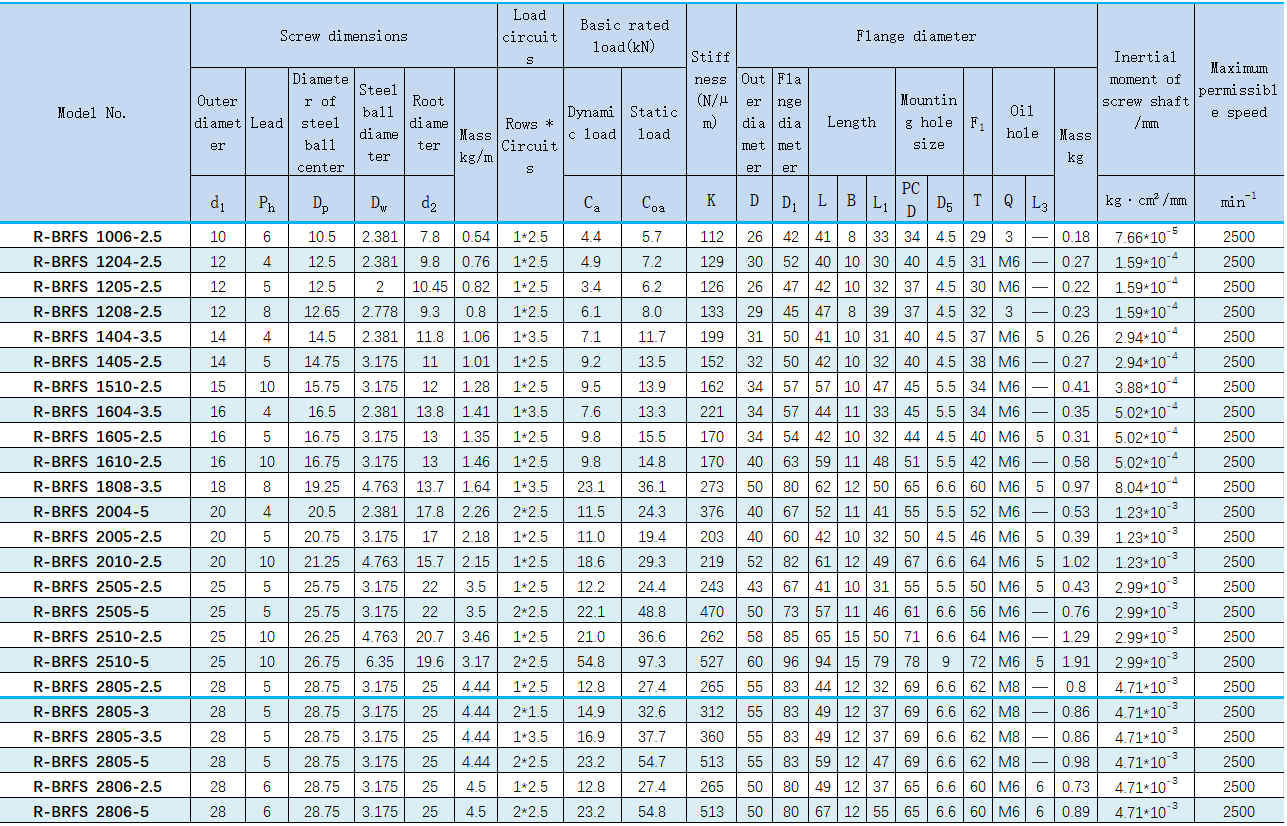

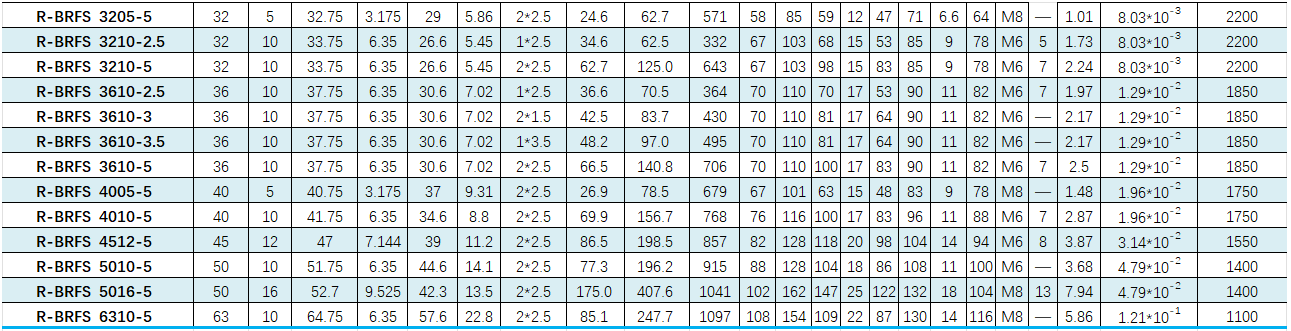

  • Parameter Specification
  • Application Scenario Display
  • Mail Inquiry

• Low cost, fast delivery

• Smooth motion characteristics
