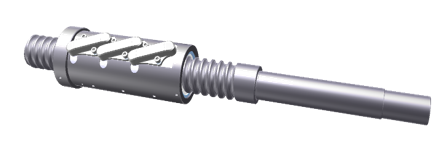

BHFS Series

Utilizing maximized steel balls and optimizing channel shapes, adopting a near-tangent lifting method to connect with the grooves of the screw, achieving smooth steel ball circulation. Resin-made retainers are added between steel balls to enhance the fixation strength of the circulating components, with protective covers added externally.

Shaft diameter:32mm-140mm

Lead:10mm-25mm

Lead≤16,DN=160,000;LeadD≥20,DN=140,000

Precision:C7-C0

  • Series Characteristics

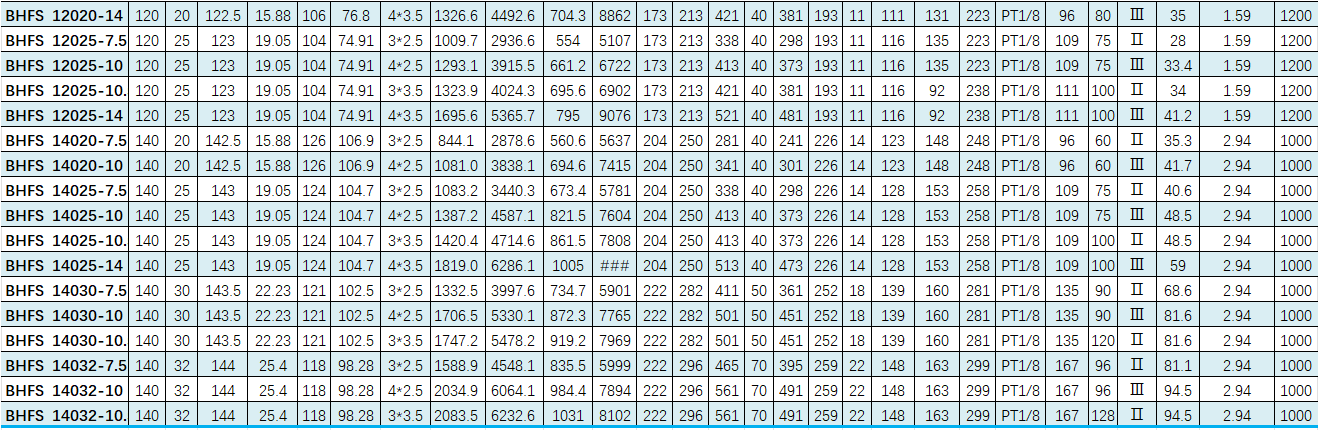

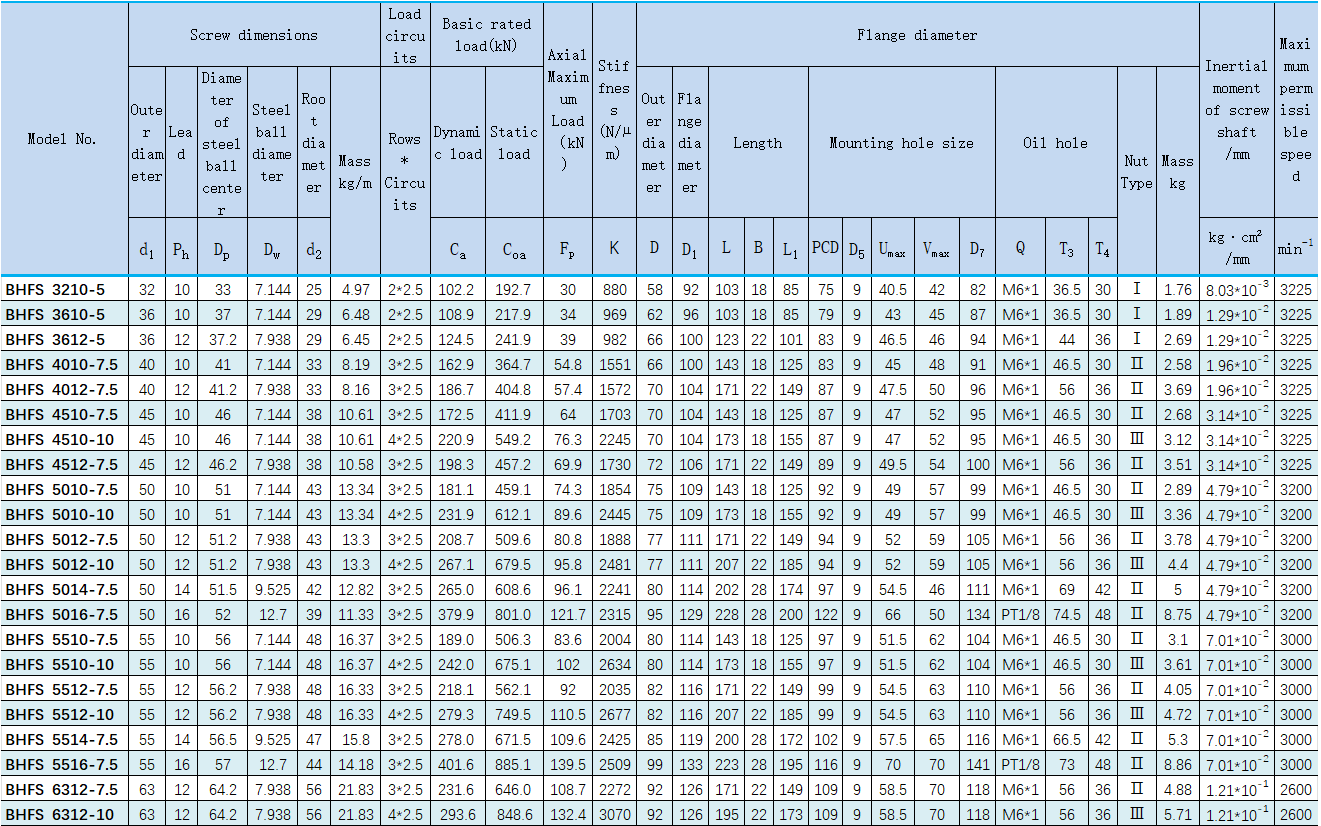

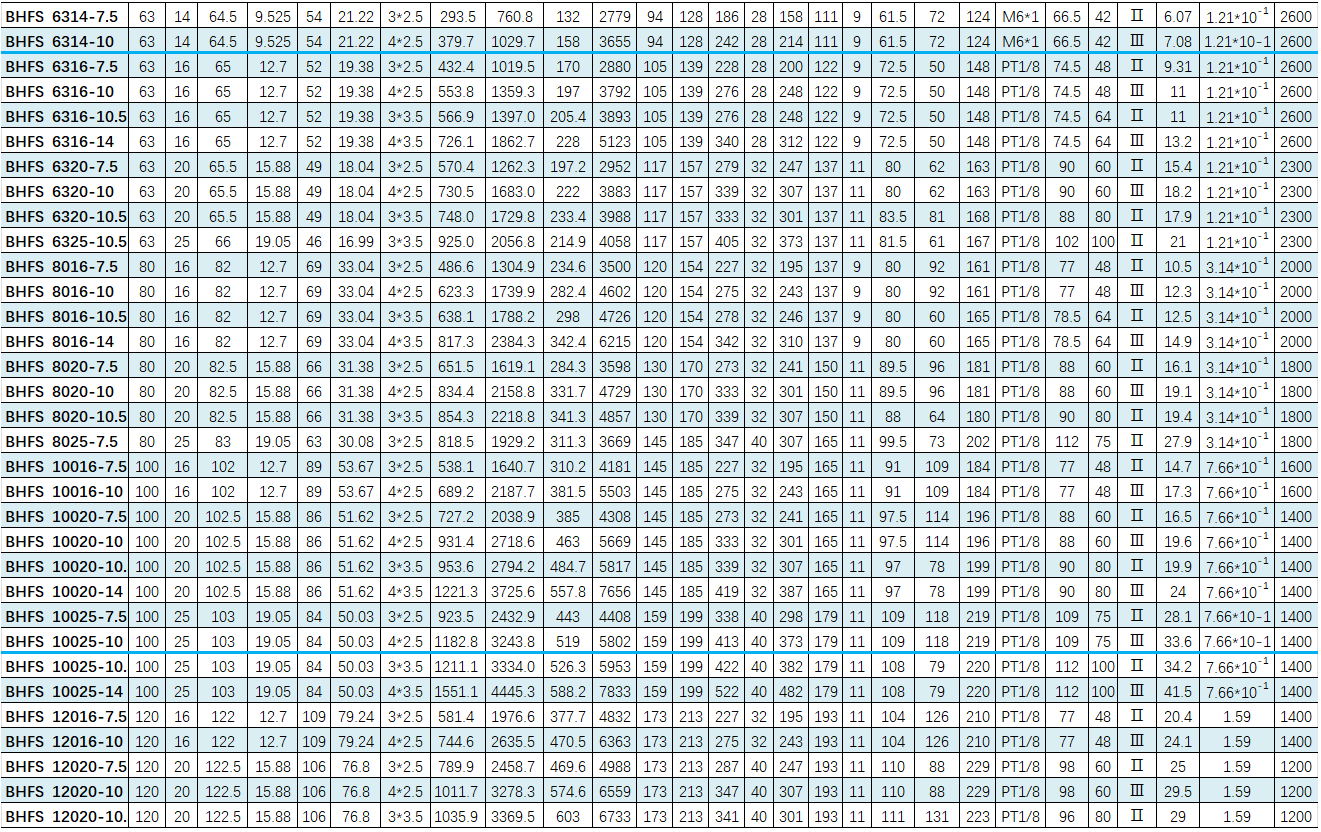

  • Parameter Specification
  • Application Scenario Display
  • Mail Inquiry

• Preload-free type

• Capable of achieving high speed and high thrust
