KRFC Series

This model involves inserting adjustment plates between two nuts to apply preload by adjusting the thickness of the adjustment plates, eliminating axial clearance. It reduces the increase in rotational torque and heat generation caused by differential sliding or rotation phenomena.

Shaft diameter:20mm-63mm

Lead:04mm-40mm

DN value:φ10-φ25 DN=100,000;φ28-φ36 DN=125,000;φ40-φ63 DN=130,000

Precision:C7-C0

  • Series Characteristics

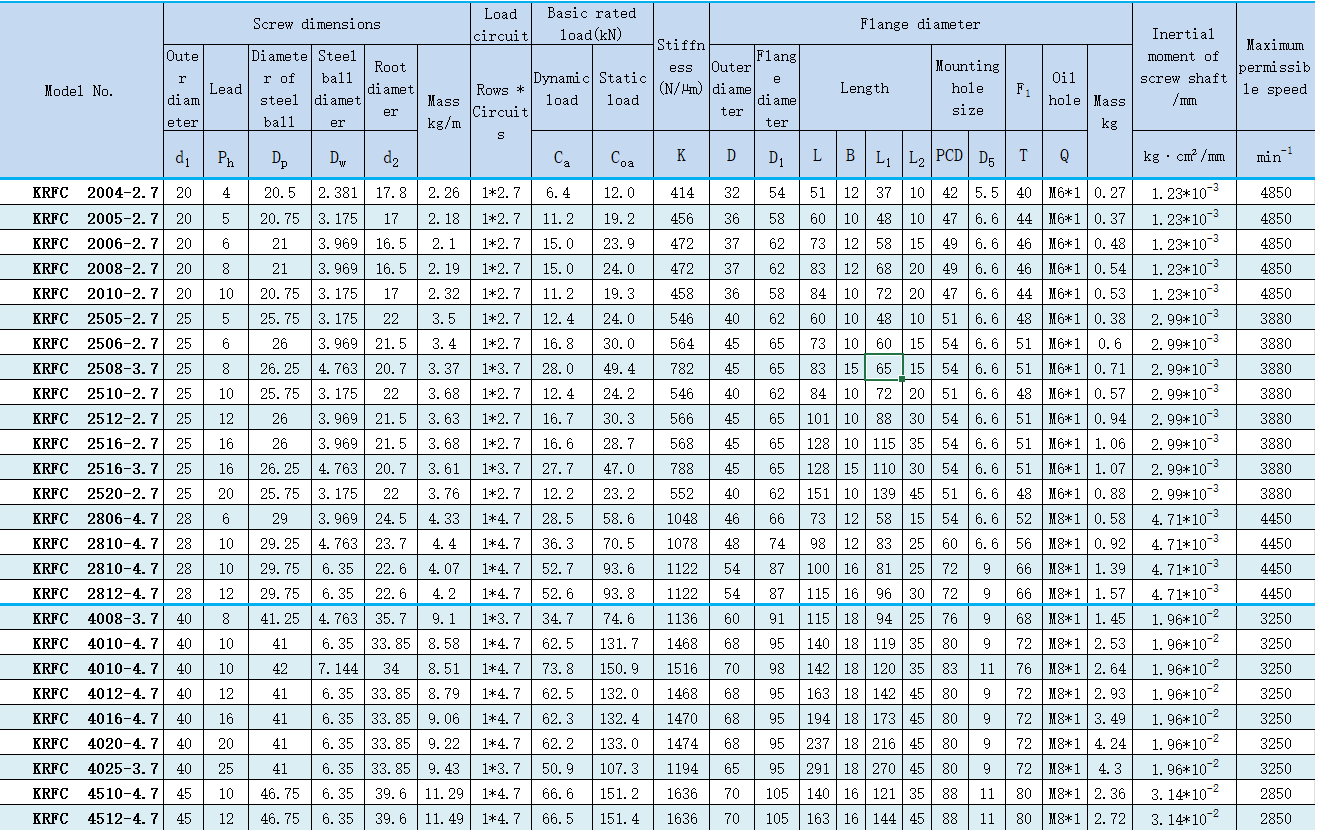

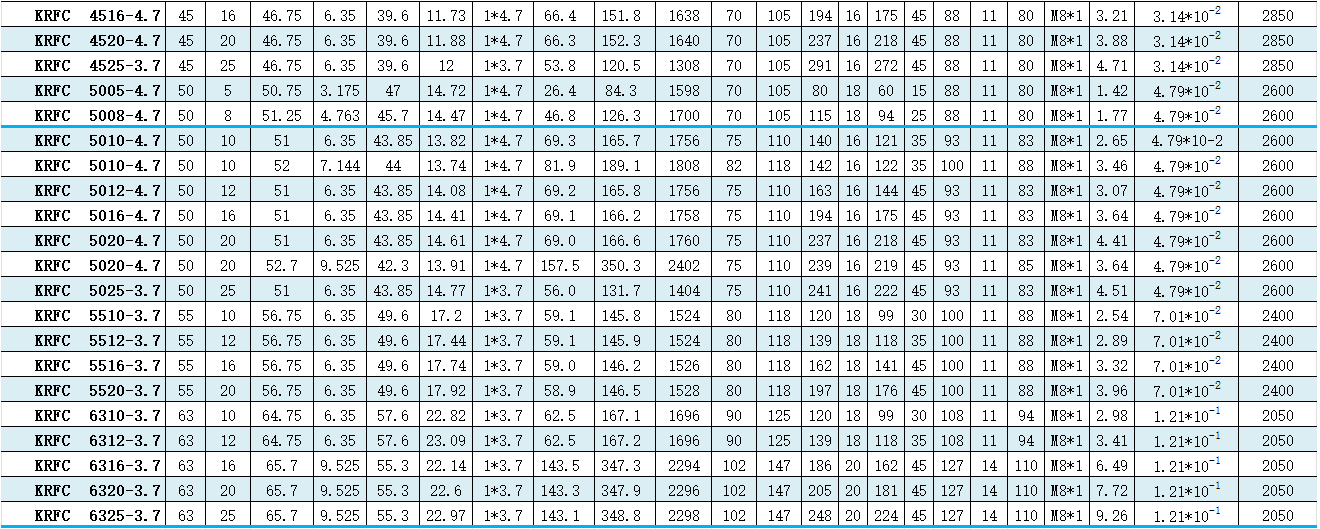

  • Parameter Specification
  • Application Scenario Display
  • Mail Inquiry

• End-to-end circulation

• Compact structure

• Capable of achieving even higher speed, high-precision positioning
