KRFS Series

Insert adjustment plates between two nuts to apply preload in a staggered manner, reducing the increase in rotational torque and heat generation caused by differential sliding or rotation phenomena; the outer diameter of the nut is about 70%-80% of the recirculating type nut with a curved pipe. This model has a small outer diameter of the nut, allowing for compact design. Additionally, due to its special recirculating structure, it achieves high-speed and quiet transmission.

Shaft diameter:10mm-63mm

Lead:04mm-40mm

DN value:φ10-φ25 DN=100,000;φ28-φ36 DN=125,000;φ40-φ63 DN=130,000

Precision:C7-C0

  • Series Characteristics

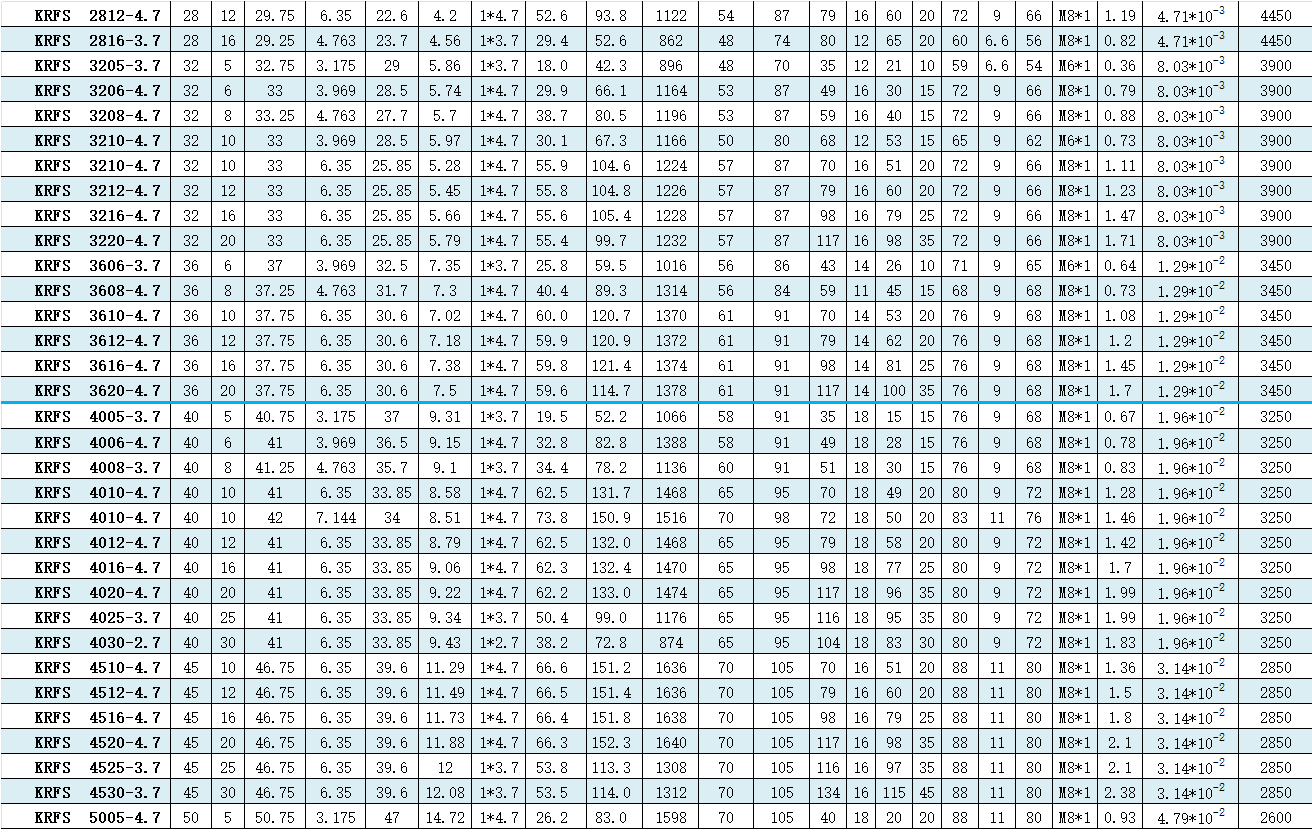

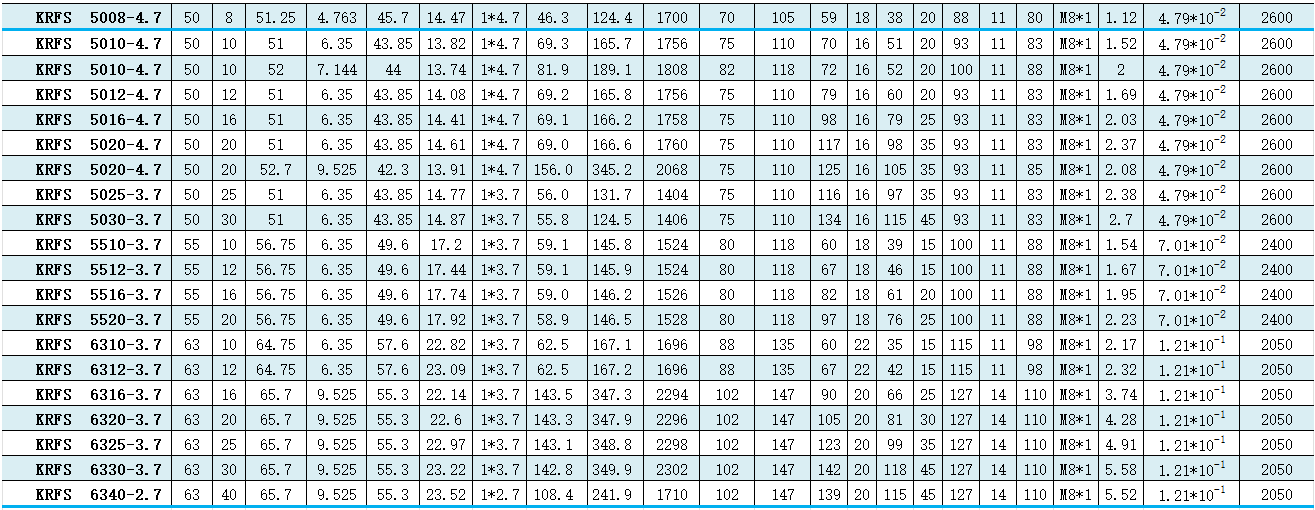

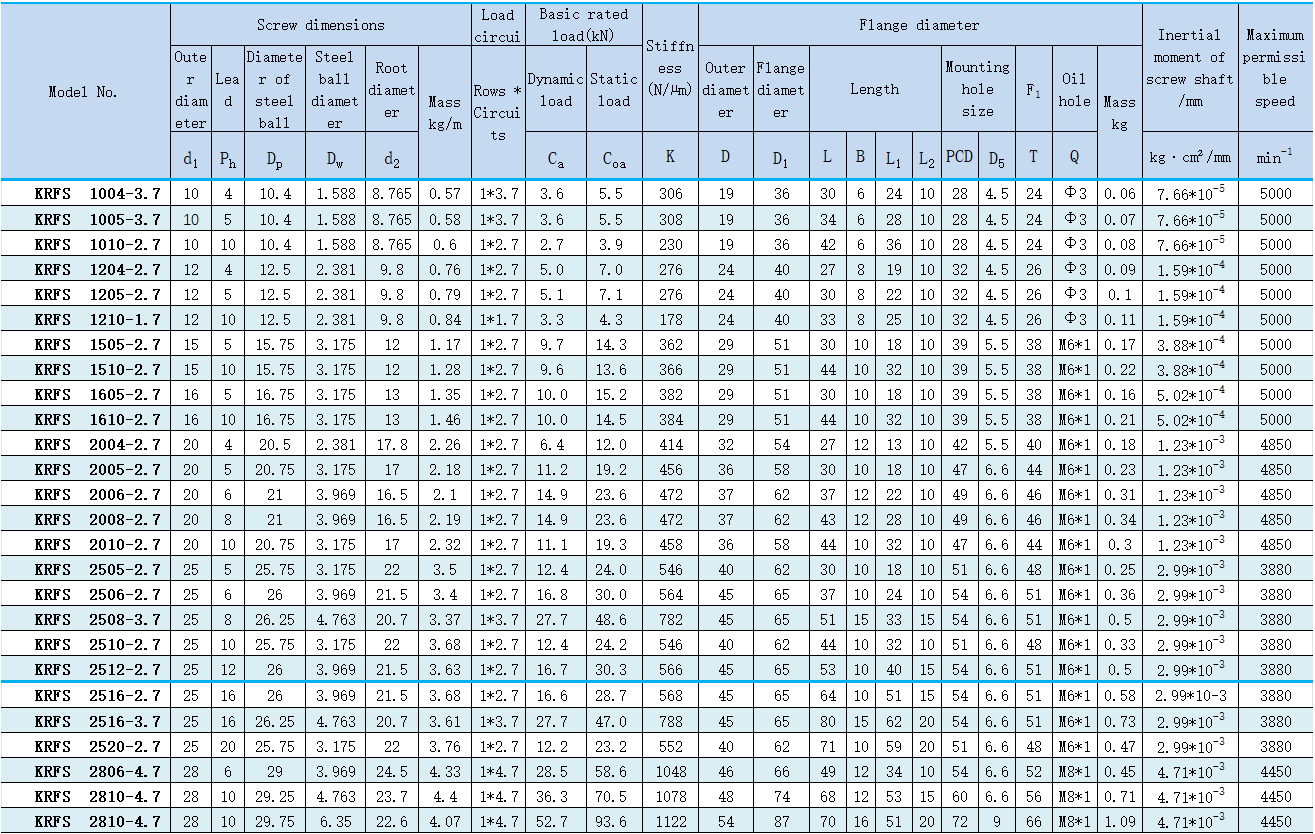

  • Parameter Specification
  • Application Scenario Display
  • Mail Inquiry

• End-to-end circulation

• Compact structure

• Capable of achieving even higher speed, high-precision positioning
