DWFC Series

Steel balls contact at four points without preload, and preload can also be applied by increasing the size of the steel balls; by using the recirculator, the outer diameter of the nut is about 70%-80% of the recirculating type nut with a curved pipe, ensuring a compact structure while providing sufficient load capacity.

Shaft diameter:16mm-100mm

Lead:04mm-20mm

DN value:φ16-φ28:70,000;φ32-φ100:100,000

Precision:C7-C0

  • Series Characteristics

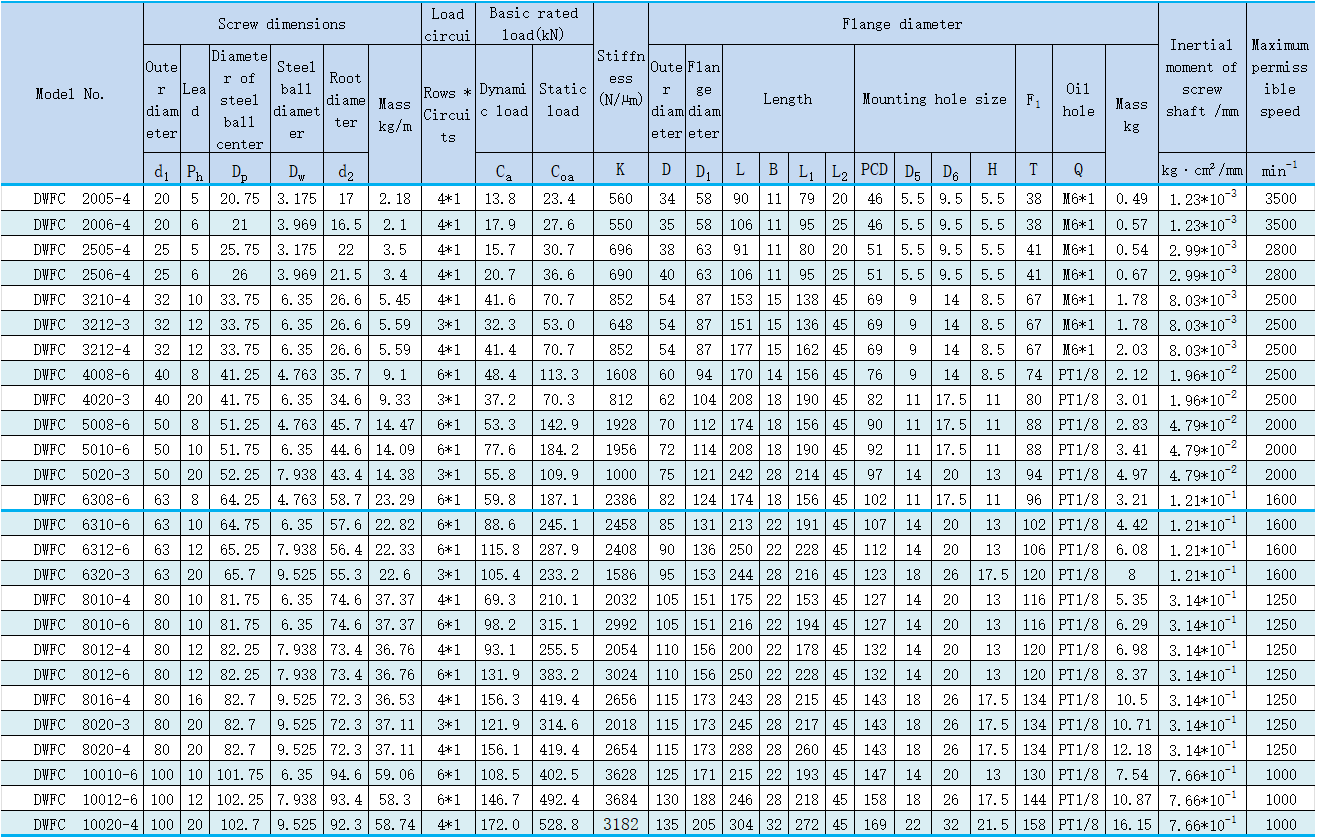

  • Parameter Specification
  • Application Scenario Display
  • Mail Inquiry

• Recirculation of the recirculator

• Compact structure

• Capable of achieving high-speed, high-precision positioning
