DWFM Series

Displacement preload type, reducing the increase in rotational torque and heat generation caused by differential sliding or rotation phenomena; the outer diameter of the nut is about 70%-80% of the recirculating type nut with a curved pipe.

Shaft diameter:16mm-63mm

Lead:04mm-16mm

DN value:φ16-φ28:70,000;φ32-φ100:100,000

Precision:C7-C0

  • Series Characteristics

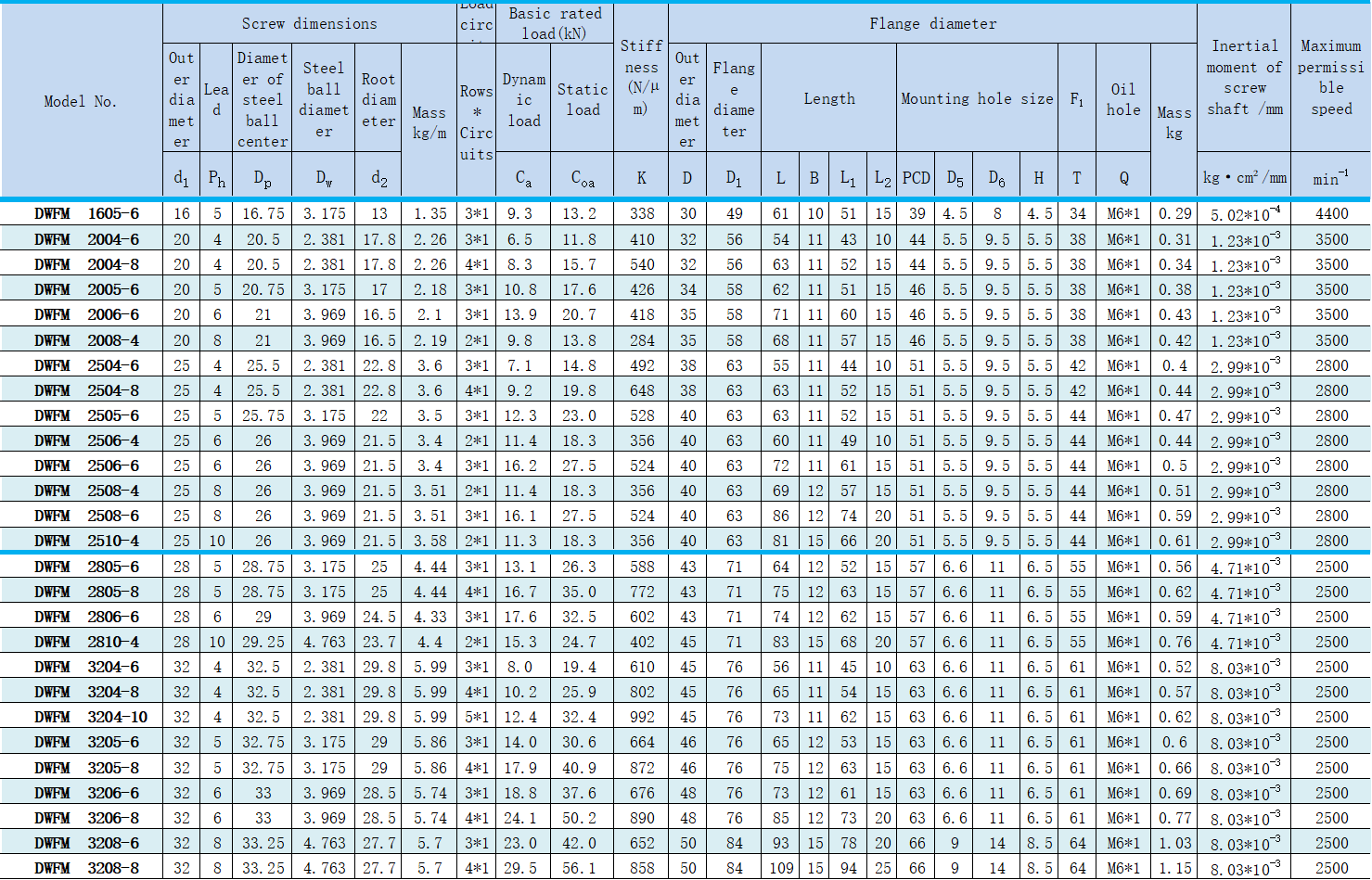

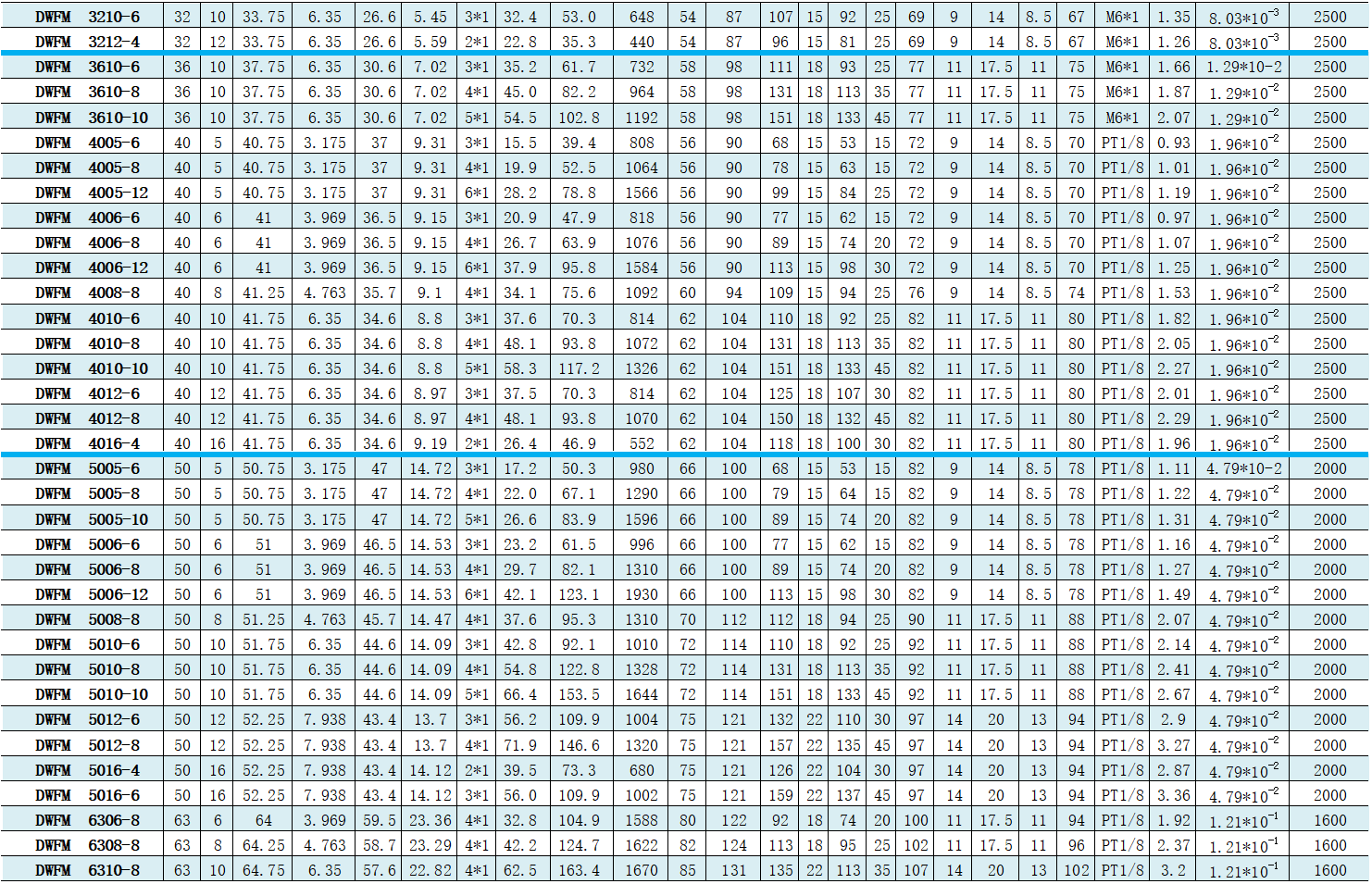

  • Parameter Specification
  • Application Scenario Display
  • Mail Inquiry

• Recirculation of the recirculator

• Compact structure

• Capable of achieving high-speed, high-precision positioning
