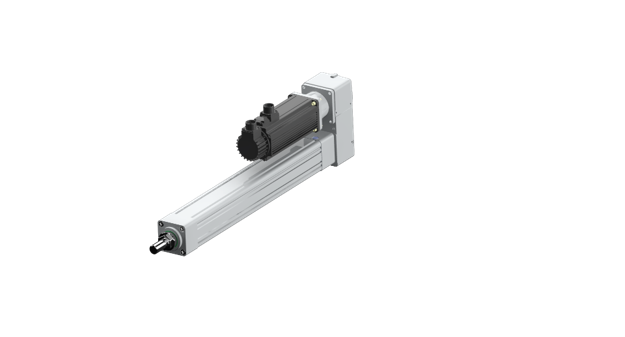

HPA-Standard Linear Actuator

HPA-Standard Linear Actuator

Force 0-55000N

Speed 0-1600mm/s

Stroke 0-2000mm

voltage DC24AC100/AC200/AC380

  • Series Characteristics

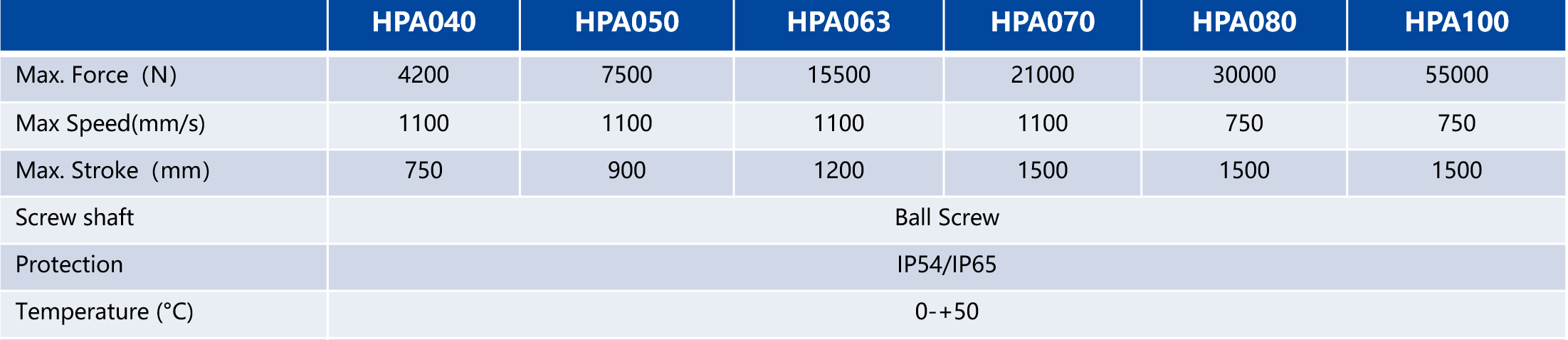

  • Parameter Specification
  • Application Scenario Display
  • Mail Inquiry

• Configuration diversity, according to the application conditions configuration of the screw and motor (drive type, control type).

• Modular design with a complete range of accessories and a variety of combination types for mounting, adjusted to the application requirements.

• Simple realization of the self-locking function (electromagnetic brake).

• Intelligent drive system with free editing of force, position and speed within the operating range.

• Essentially maintenance-free, only a small amount of grease needs to be added periodically.

• Perfect replacement for pneumatic cylinders according to ISO-15552.

• Replacement of low-pressure hydraulic cylinders.
